Animal Feed Mixing

We are a leading designer and supplier of paddle mixing solutions for animal feed production. Our mixers offer fast, accurate, and repeatable mixing at a fraction of the energy consumption.

View all Industries

Products

CPE Powder Mixers for Animal Feed Manufacture

Coarse Ration Mixing:

Mixing of flaked cereal, powders & vitamins homogeneously in 30 seconds with no product damage or dust generation.
Addition of molasses to various animal feeds. Time to uniform mix can be as low as20 seconds.

Fat Coating of Pellets:

Extruded and pressed pellets can be coated in a CPE Mixer with no product degradation. With the high degree of mixing accuracy, feed mills can measure the exact quantities of pellets & oil thus ensuring no waste.

retractable mixer, CPE C Series Powder Blender

Example of CPE Mixer Retrofit in Animal Feed Manufacture

CPE retrofitted a single paddle system into the existing Ribbon Blender body used to produce for Animal Feed production.

	Existing Mixing equipment – Ribbon Blender (2 tonnes)	Retrofit – Ribbon Blender (2 tonnes) Retrofitted with Single Paddle System
Production Capacity	18.5 tonnes/hour (i)	34 tonnes/hour
Mix Quality	CV = 12	CV = 5.6
Mix Time	4 minutes	1 minute
Dispense Time	2 minutes	2 minutes

Learn about the outcome of the paddle mixer retrofit.

Animal Feed – CPE Mixer Range

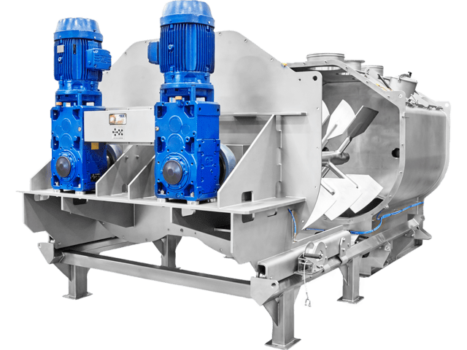

C Series MixerTwin shaft paddle mixer, no segregation, shear, or heat generation during mixing while providing a very low coefficient of variation.
C Series RetractableSame C Series mixer with a fully retractable rotor assembly from the mixer body to facilitate easier cleaning.

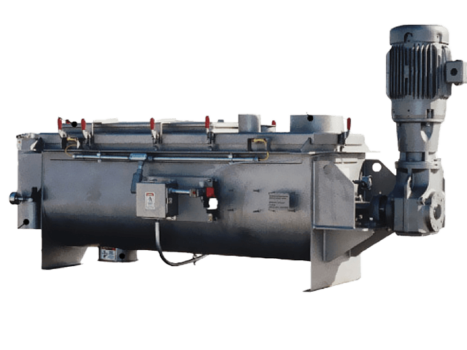

A&J MixerEfficient and cost-effective blending of powders, granules, fibres, flakes, and pellets. Offered in mild or stainless steel.
CPE Hygienic Design Vacuum Mixer (CHDV)Vacuum rated cylindrical design with torispherical ends. The vacuum design can also be used with Nitrogen atmosphere purging for helping to extend product shelf life.

: C Series Standard Mixer

: C Series Retractable Mixer

: A&J Mixer

: CHDV Mixer

Process Optimisation & Retrofit Service

We offer process optimisation services of existing agitators and mixers. Our experienced engineers conduct in-depth analysis of your process and recommend cost-effective solutions to address your process issues.
