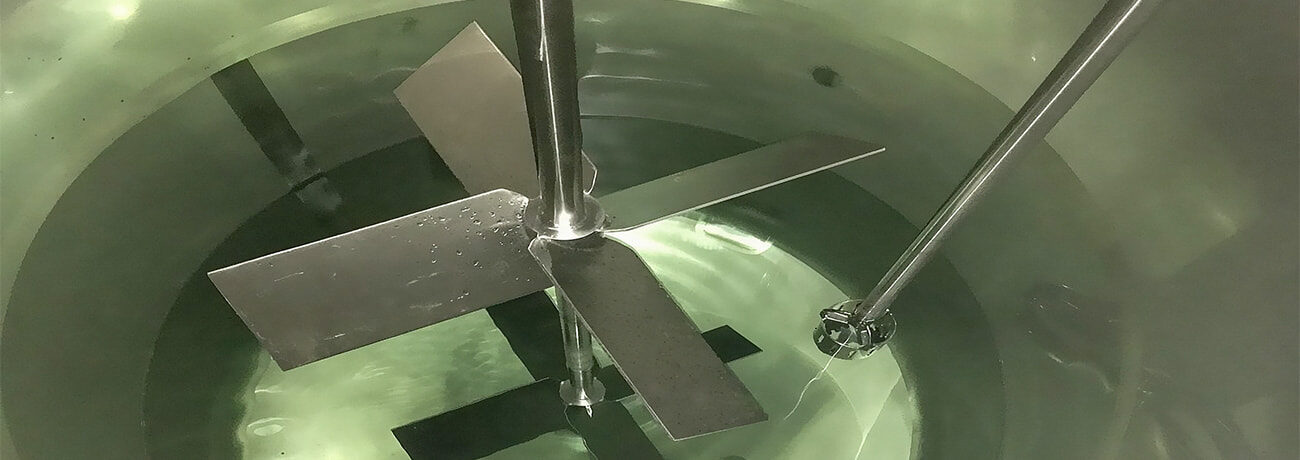

SANFOIL® agitator series are designed specifically for sanitary applications including food & beverage, pharmaceutical, and cosmetics industries. The SANFOIL® series meet the stringent sanitary processing standards and are CIP friendly.
Sanitary Agitator, Configurations

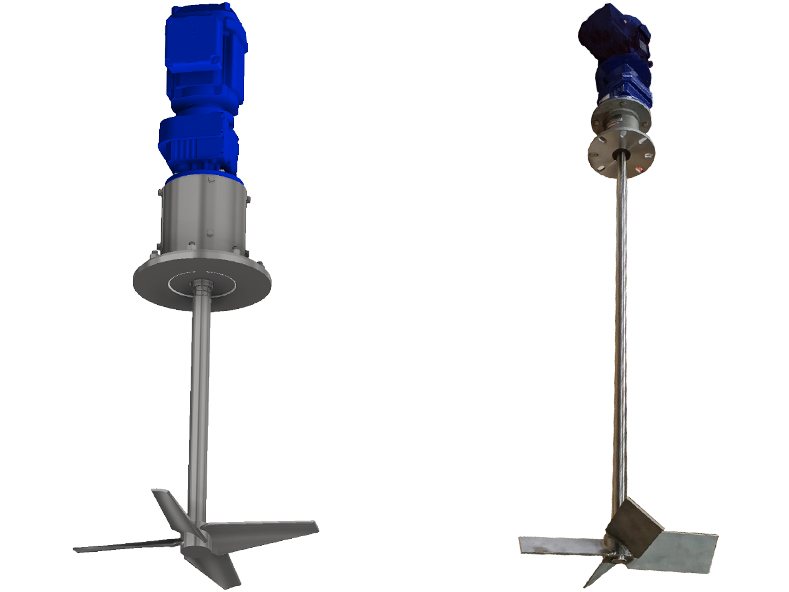

| Sanfoil® RTF4 and P Series (Low to Medium Shear) |
|---|
| Used for sanitary agitation |
| SANFOIL-RTF4 suitable for gentle blending- top or side entry mounts |
| SANFOIL-P suitable for medium shear mixing, dispersion, homogenisation- top entry mount |
| Direct drive and gear reduced motor |
| Sanitary design eliminating bacterial growth |
| Wet ends polished to 180 grit |
| Various seal options (stuffing box, mechanical, lip, hydraulic) |
| Sanfoil® RS (High Shear) |
|---|
| Rotosolver Technology suitable for high shear mixing – top entry mount |
| Sanitary design eliminating bacterial growth |
| Wet ends polished to 180 grit |
| Applications include processing of salad dressing, mayonnaise, dips, gums, pharmaceuticals, hand, and face creams |
| Sanfoil® ViscoPro (High Viscosity) |
|---|
| Anchor, Counter rotating, Helix agitators |
| Suitable for high viscosity mixing |
| Sanitary design eliminating bacterial growth |
| Wet ends polished to 180 grit |
| Applications include processing of chocolate, honey, and other high viscosity sanitary applications |
SANFOIL® Key Features
Varying Tank Operating Levels
Bottom or side entry agitators are prone to suffer hydrodynamic load fluctuations as the tank operating levels vary considerably in the dairy industry.
- CPE has developed a special pedestal with a bearing in the flange
- This significantly reduces the stresses on the gearbox and mechanical seal

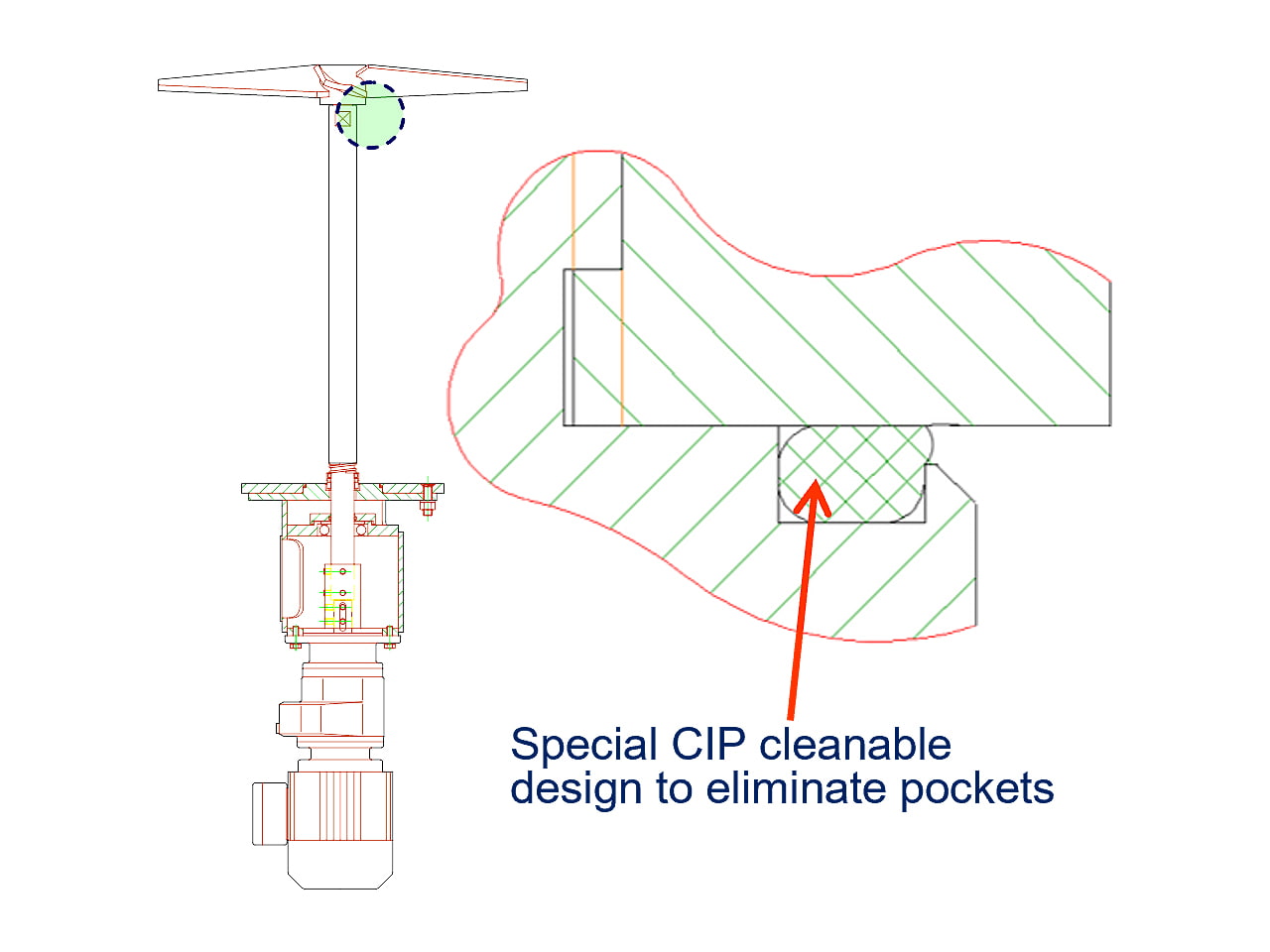

Trapping Points
- Spacing between tank flange and agitator flange is designed to allow CIP
- ‘O’ rings are employed between mating surfaces
- Precision machining ensures ‘O’ ring is compressed to produce a profile which is easy to CIP
- Crevices that are hard to clean are minimised
- Sanitary tank flanges are supplied

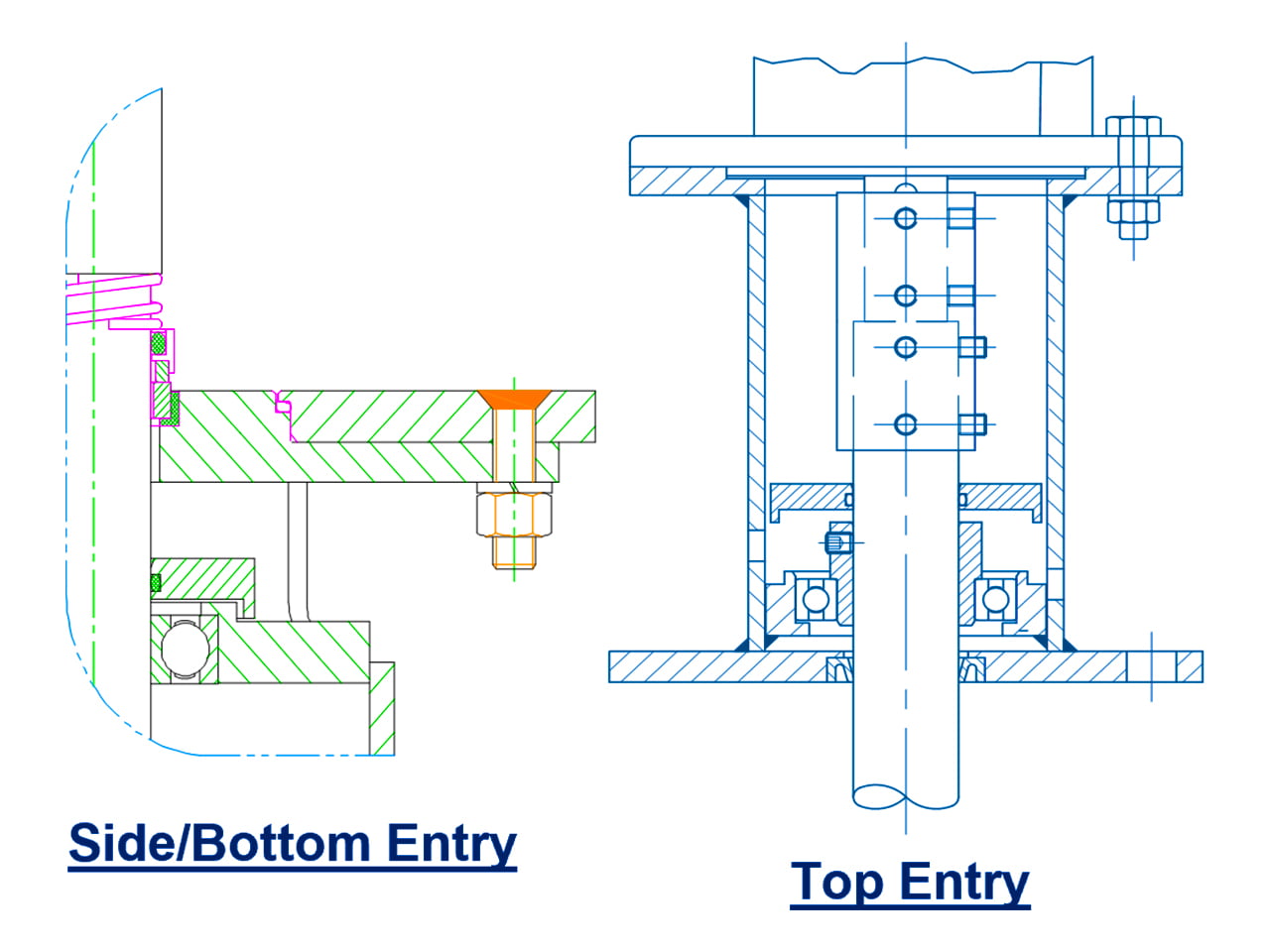

Removal of Condensate
In some dairy processing operations, condensation is inevitable. DairPro™ has a modified pedestal which allows any condensation to drain.
CPE is a world leading designer and supplier of agitation solution. Sanfoil® can offer improved process efficiency and product consistency while reducing operating cost considerably.Learn more about our world leading impeller technology.
SANFOIL® is used by numerous major food and pharmaceutical manufacturers.
Agitator Process Optimisation
In addition to agitator supply, we have decades of knowledge and experience in agitation process optimisation. Our experts can analyse your process and offer you cost-effective solutions to:
- reduce your mix time
- reduce your power consumption
- increase your tank utilisation
- improve your product quality and consistency
