Advantages of Cricket Filters

Cricket filters have the design advantages of both pressure leaf filters and candle filters combined without having their drawbacks. These filters operate in a vertical pressure vessel with filter medium covering internal filtrate flow pipes, offering both dry and wet cake discharge.

Cricket filters are often used as a dynamic thickener or as a polishing filter after pressure leaf or vacuum filters.

CPE Cricket Filters

Chemical Plant & Engineering offers a range of Cricket filters for fine filtration in various applications, such as food, chemical, and water/wastewater treatment. We custom design filters to suit your specific process needs.

Cricket Filter Applications
CPE Cricket Filter

Why Use CPE Cricket Filters

  • Higher filtration velocities
  • Lower sluicing volume per unit of filtration area
  • Large filtration area in small tank volume – due to shape and positioning of filter elements
  • High liquid throughput without filter cake erosion – up to 10 m3/m2h
  • High filtrate clarity
  • Filter media with low micron rating (optional) – clear filtrate from the start
  • Short regeneration times
  • Fully automated
  • Normally no pre-coating needed

cricket filter head also for spares

Key Features of CPE Cricket Filters

  • Elements on internal filtrate manifolds: separate flow control possible, thus cake discharge for manifolds individually or in groups
  • Filter elements: Small internal volume, thus cake release with minimum backwash liquid
  • Internal filtrate pipe rising from bottom, thus no solids deposited in the filter element
  • Intensive cleaning of filter medium is possible (normally before filtration): Blow back, Backwashing
  • Precoat filtration: Secure fine filtration efficiency, prevents filter media from clogging

How CPE Cricket Filters Work

Wet cake discharge

  1. Precoating (Optional)
  2. Filling
  3. Recirculation
  4. Filtration
  5. Emptying
  6. Backwashing
  7. Slurry discharge

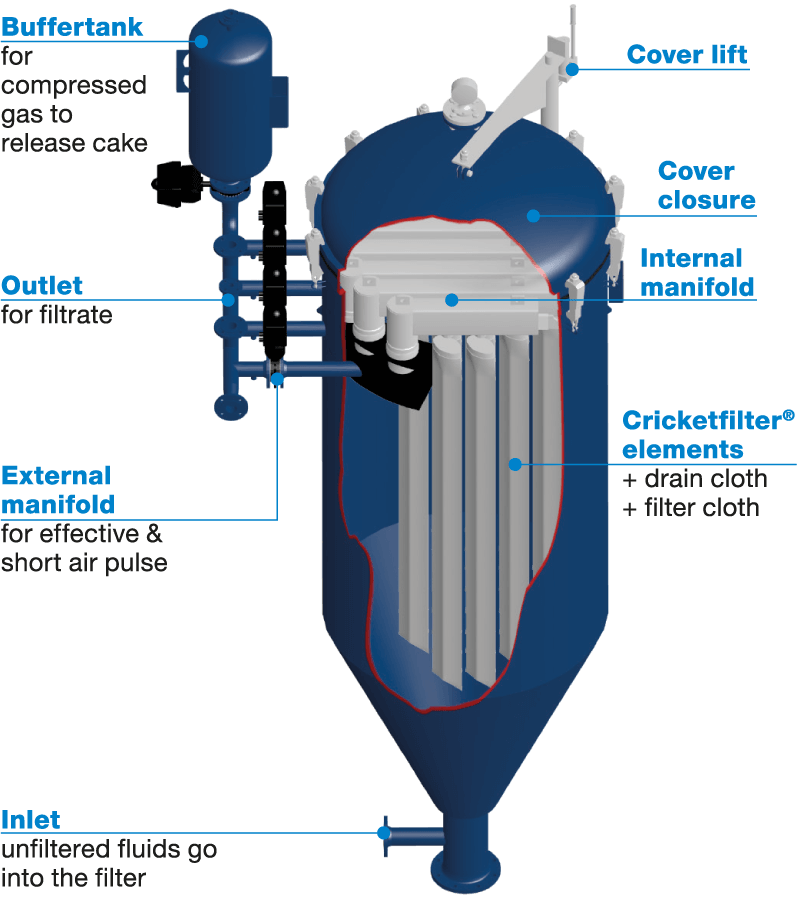

wet cake dischrage system cricket filter | CPE filtration

Dry cake discharge

  1. Precoating (Optional)
  2. Filling
  3. Recirculation
  4. Filtration
  5. Emptying
  6. Cake drying
  7. Blowback
  8. Cake discharge

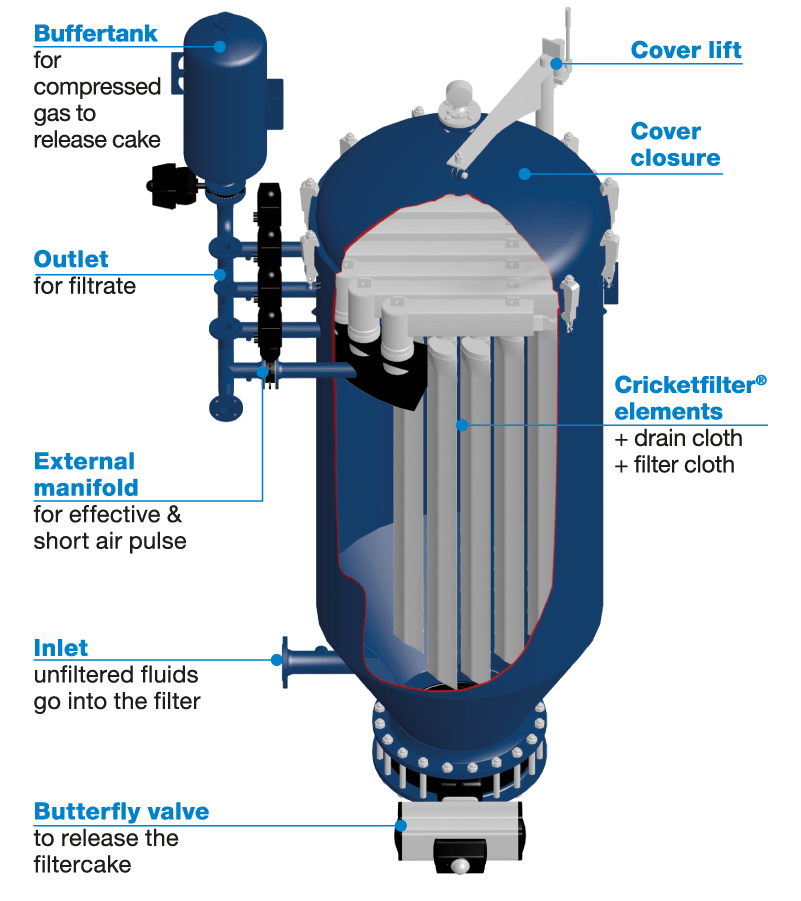

dry cake dischrage system cricket filter | CPE filtration
