Filter Design

We custom design filtration solutions to your specific process requirements.

View all Services

Our Experience in Filter Design

With over 50 years of design and worldwide supply experience, we endeavour to constantly modify and upgrade our filter designs to optimise the efficiency and quality of our customers’ processes.

See our Filter Range.

Our Rotary Vacuum Pan Filter design has evolved over the years to become the best in its class with the following superior design features.

Vacuum Pan Filter Design Features

CENTRE HUB:

  • Three-piece centre hub assembly which allows us to obtain a pan deck flatness of +/- 1.0 mm.

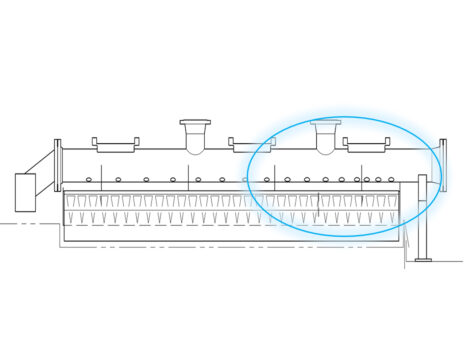

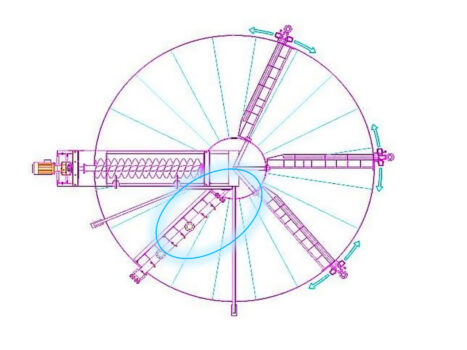

FEED TROUGH:

  • Our feed trough design maximises filter performance by radial compensation of the feed rate across the pan.

VALVE DESIGN:

  • Our superior valve design has enhanced wear performance and is easier to maintain.

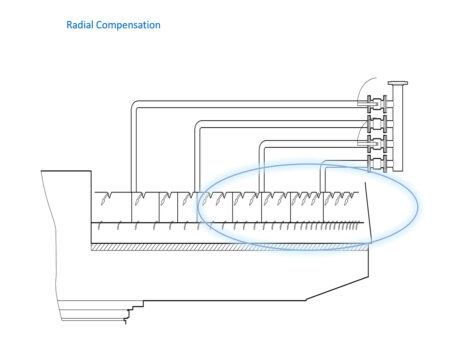

WASHING WEIRS:

  • Weir design washing system made of 304 S/S providing even wash across the pan radius.
  • Flooded design to ensure even displacement of caustic.
flow control valve with radical compensation

DRAINAGE INSERTS:

  • Special design drainage inserts to accelerate the drainage rate.

Talk To Us

Contact our Filtration Team to learn more about our filter design.
